Cable-X Wiring Diagram:
Connect the RED wire (through
a 5 AMP fuse) to the engine side of the ignition switch
(+12v 'hot' when the key is 'on').
Connect the BLACK wire to
battery ground.
Connect the WHITE wire to the
signal wire.
|
Field Test Procedures:
Remove / turn off power.
Remove the Cable-X cover / lid.
Write down your existing
switch settings for possible future use.
Set all dip switches to the
open (off) position. See example below.
Apply power. The "LED" must
blink once when the power is applied. (The circuitry will only go into the self test
mode if switches #1 through #11 are open (off) before the power is applied.)
Close (turn on) switches #1
through #11 in order, beginning with #1. The "LED" will blink once after
each switch is closed (turned on).
After switch #11 is closed,
the speedometer will run at a speed of 60 MPH for 20 seconds. The vehicle odometer
will advance a little over 0.3 miles. The "LED" will be on 'steady'
during this part of the test. (Special Note to Cable-X-30 users: The
speedometer will only run at 16 MPH during this test and less that 0.1 mile)
After the speedometer stops,
the "LED" will blink on and off.
If all steps listed are
completed, then the Cable-X unit is functioning properly.
If the Cable-X, after
calibrating the switches, does not work, there is a 'signal' problem.
Now you are ready to
calculate your specific pulses per mile for the Cable-X.
Example of switches in the open (off) position:
(The Black portion of the switch in this diagram indicates the position of the switch)
|
Calculating your Pulses Per Mile:
To program the Cable-X's dip
switches for your particular vehicle, the following formula applies:
(teeth on transmission
exciter gear) X (rear axle ratio) X (revolutions per mile of your
tires)
Teeth on transmission exciter
gear. This would refer to the number of teeth or pulses the transmission would count
out per revolution of the drive shaft. Most GMs with automatic transmissions output
40 pulses per revolution. High performance transmissions, like in Trans Ams, Camaros
and Corvettes that have '6-speeds', usually have a 17 pulse per revolution output.
The rear axle ratio. You will need to
know your rear axle ratio for accurate calibration. The ratio of 3.73 will be used
in the example.
Revolutions per mile of your tires. If
you do not know the revs per mile of your tire, it can be calculated. Measure from the ground up to the center of the axle, multiply this by 2.
This gives you the height of the tire with the weight of the vehicle on
it. Multiply this total by 3.14 (Pi). This gives you the circumference. Divide
the number of inches in a mile (63360) by the circumference of the tire to find
your revs per mile.
Now that you've gathered
relevant information, you can calculate the pulses per mile of your vehicle.
The above information will be
used for calculations in the example.
Example:
40 (teeth on exciter) X 3.73 (rear axle ratio) X 695.8 (revs
per mile of tire) = 103813 pulses per mile.
Look up the nearest program setting in the calibration chart. The nearest setting
for 103813 is 104000.
The switch setting for that pulse per mile setting is: 0 1 0 0 0 0 0 1 0 1 0 0.
Switches 2, 8 and 10 will be closed.
If you are using a signal
generator (sending unit) instead of a VSS sensor, you can use the pulses per revolution X
1000 for a good starting point. For example: An 8 pulse signal generator
X 1000 = 8000 pulses per mile. The setting for 8000 ppm is: 0
0 1 1 0 0 1 0 0 0 0 0. Switches 3, 4 and 7 will be closed.
If you are using the ECM speed
output, the pulses are usually 4000 pulses per mile. The setting for 4000 ppm is:
0 0 0 1 1 0 0 1 0 0 0 0. Switches 4, 5 and 8 will be closed.
The above two signal sources
will have to be recalibrated up or down because of rear axle ratios and tire sizes varying
from stock.
Note to users of the
Cable-X-30 models: Multiply your pulses per mile by .267 and set your switches according
to the new calculation for proper operation. The 'field test' will only run at 16
mph instead of the 60 mph as listed in the above procedure.

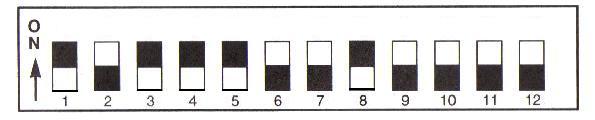

Example of switch settings for 29,600 pulses per mile:
(The Black portion of the switch in this
diagram indicates the position of the switch)
This example shows switches 1, 3, 4, 5, and 8 in the closed
(on) position. The setting in the chart below would appear like:
1011100100
( where "1" represents switch is "on" or "closed",
"0" represents switch is "off" or "open" )
There has been some confusion trying to read
the chart the way it is laid out. Switch 10 has a specific function as a pulse
divider by a factor of 10.
This function will take a high pulse rate and
divide it by 10 to put it into the range of the Cable-X's calibration capabilities.
Any pulse rate above 40,920 pulses per mile will need to have switch 10 turned on.
(In the example above, if switch 10 was in the closed (on) position, the setting would be
for a 296,000 pulse per mile signal.)
The chart below has a column with 10 settings
for calibration, a column for switch #10 in the open (off) position {#10=0} and a column
for switch #10 in the closed (on) position {#10=1}. After calculating your pulses
per mile, decide which position switch #10 will be positioned. The ten settings in
the first column (read the top row of the chart for switch numbers) are for switches 1, 2,
3, 4, 5, 6, 7, 8, 9, skips 10, and shows switch 11 after the 9 switch, making 10 settings
to be made.
An example would be for a setting of 92,000
pulses per mile. Switch 10 would be closed (on). Look for 92,000 under the
last column since switch 10 is 'on' and find the setting for your Cable-X. The
setting is: 0011100110. (This is for switches 1-9, and 11).
Switch #12 is not normally used except when you
have a 3-wire speed sensor (hall effect type) or an extremely weak signal and is only
operational when factory activated.
|
Switch Settings Impulse Speeds
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 0 0 0 0 0 0 0 1 40 400
0 0 0 0 0 0 0 0 1 0 80 800
0 0 0 0 0 0 0 0 1 1 120 1200
0 0 0 0 0 0 0 1 0 0 160 1600
0 0 0 0 0 0 0 1 0 1 200 2000
0 0 0 0 0 0 0 1 1 0 240 2400
0 0 0 0 0 0 0 1 1 1 280 2800
0 0 0 0 0 0 1 0 0 0 320 3200
0 0 0 0 0 0 1 0 0 1 360 3600
0 0 0 0 0 0 1 0 1 0 400 4000
0 0 0 0 0 0 1 0 1 1 440 4400
0 0 0 0 0 0 1 1 0 0 480 4800
0 0 0 0 0 0 1 1 0 1 520 5200
0 0 0 0 0 0 1 1 1 0 560 5600
0 0 0 0 0 0 1 1 1 1 600 6000
0 0 0 0 0 1 0 0 0 0 640 6400
0 0 0 0 0 1 0 0 0 1 680 6800
0 0 0 0 0 1 0 0 1 0 720 7200
0 0 0 0 0 1 0 0 1 1 760 7600
0 0 0 0 0 1 0 1 0 0 800 8000
0 0 0 0 0 1 0 1 0 1 840 8400
0 0 0 0 0 1 0 1 1 0 880 8800
0 0 0 0 0 1 0 1 1 1 920 9200
0 0 0 0 0 1 1 0 0 0 960 9600
0 0 0 0 0 1 1 0 0 1 1000 10000
0 0 0 0 0 1 1 0 1 0 1040 10400
0 0 0 0 0 1 1 0 1 1 1080 10800
0 0 0 0 0 1 1 1 0 0 1120 11200
0 0 0 0 0 1 1 1 0 1 1160 11600
0 0 0 0 0 1 1 1 1 0 1200 12000
0 0 0 0 0 1 1 1 1 1 1240 12400
0 0 0 0 1 0 0 0 0 0 1280 12800
0 0 0 0 1 0 0 0 0 1 1320 13200
0 0 0 0 1 0 0 0 1 0 1360 13600
0 0 0 0 1 0 0 0 1 1 1400 14000
0 0 0 0 1 0 0 1 0 0 1440 14400
0 0 0 0 1 0 0 1 0 1 1480 14800
0 0 0 0 1 0 0 1 1 0 1520 15200
0 0 0 0 1 0 0 1 1 1 1560 15600
0 0 0 0 1 0 1 0 0 0 1600 16000
0 0 0 0 1 0 1 0 0 1 1640 16400
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 0 0 1 0 1 0 1 0 1680 16800
0 0 0 0 1 0 1 0 1 1 1720 17200
0 0 0 0 1 0 1 1 0 0 1760 17600
0 0 0 0 1 0 1 1 0 1 1800 18000
0 0 0 0 1 0 1 1 1 0 1840 18400
0 0 0 0 1 0 1 1 1 1 1880 18800
0 0 0 0 1 1 0 0 0 0 1920 19200
0 0 0 0 1 1 0 0 0 1 1960 19600
0 0 0 0 1 1 0 0 1 0 2000 20000
0 0 0 0 1 1 0 0 1 1 2040 20400
0 0 0 0 1 1 0 1 0 0 2080 20800
0 0 0 0 1 1 0 1 0 1 2120 21200
0 0 0 0 1 1 0 1 1 0 2160 21600
0 0 0 0 1 1 0 1 1 1 2200 22000
0 0 0 0 1 1 1 0 0 0 2240 22400
0 0 0 0 1 1 1 0 0 1 2280 22800
0 0 0 0 1 1 1 0 1 0 2320 23200
0 0 0 0 1 1 1 0 1 1 2360 23600
0 0 0 0 1 1 1 1 0 0 2400 24000
0 0 0 0 1 1 1 1 0 1 2440 24400
0 0 0 0 1 1 1 1 1 0 2480 24800
0 0 0 0 1 1 1 1 1 1 2520 25200
0 0 0 1 0 0 0 0 0 0 2560 25600
0 0 0 1 0 0 0 0 0 1 2600 26000
0 0 0 1 0 0 0 0 1 0 2640 26400
0 0 0 1 0 0 0 0 1 1 2680 26800
0 0 0 1 0 0 0 1 0 0 2720 27200
0 0 0 1 0 0 0 1 0 1 2760 27600
0 0 0 1 0 0 0 1 1 0 2800 28000
0 0 0 1 0 0 0 1 1 1 2840 28400
0 0 0 1 0 0 1 0 0 0 2880 28800
0 0 0 1 0 0 1 0 0 1 2920 29200
0 0 0 1 0 0 1 0 1 0 2960 29600
0 0 0 1 0 0 1 0 1 1 3000 30000
0 0 0 1 0 0 1 1 0 0 3040 30400
0 0 0 1 0 0 1 1 0 1 3080 30800
0 0 0 1 0 0 1 1 1 0 3120 31200
0 0 0 1 0 0 1 1 1 1 3160 31600
0 0 0 1 0 1 0 0 0 0 3200 32000
0 0 0 1 0 1 0 0 0 1 3240 32400
0 0 0 1 0 1 0 0 1 0 3280 32800
0 0 0 1 0 1 0 0 1 1 3320 33200
0 0 0 1 0 1 0 1 0 0 3360 33600
0 0 0 1 0 1 0 1 0 1 3400 34000
0 0 0 1 0 1 0 1 1 0 3440 34400
0 0 0 1 0 1 0 1 1 1 3480 34800
0 0 0 1 0 1 1 0 0 0 3520 35200
0 0 0 1 0 1 1 0 0 1 3560 35600
0 0 0 1 0 1 1 0 1 0 3600 36000
0 0 0 1 0 1 1 0 1 1 3640 36400
0 0 0 1 0 1 1 1 0 0 3680 36800
0 0 0 1 0 1 1 1 0 1 3720 37200
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 0 1 0 1 1 1 1 0 3760 37600
0 0 0 1 0 1 1 1 1 1 3800 38000
0 0 0 1 1 0 0 0 0 0 3840 38400
0 0 0 1 1 0 0 0 0 1 3880 38800
0 0 0 1 1 0 0 0 1 0 3920 39200
0 0 0 1 1 0 0 0 1 1 3960 39600
0 0 0 1 1 0 0 1 0 0 4000 40000
0 0 0 1 1 0 0 1 0 1 4040 40400
0 0 0 1 1 0 0 1 1 0 4080 40800
0 0 0 1 1 0 0 1 1 1 4120 41200
0 0 0 1 1 0 1 0 0 0 4160 41600
0 0 0 1 1 0 1 0 0 1 4200 42000
0 0 0 1 1 0 1 0 1 0 4240 42400
0 0 0 1 1 0 1 0 1 1 4280 42800
0 0 0 1 1 0 1 1 0 0 4320 43200
0 0 0 1 1 0 1 1 0 1 4360 43600
0 0 0 1 1 0 1 1 1 0 4400 44000
0 0 0 1 1 0 1 1 1 1 4440 44400
0 0 0 1 1 1 0 0 0 0 4480 44800
0 0 0 1 1 1 0 0 0 1 4520 45200
0 0 0 1 1 1 0 0 1 0 4560 45600
0 0 0 1 1 1 0 0 1 1 4600 46000
0 0 0 1 1 1 0 1 0 0 4640 46400
0 0 0 1 1 1 0 1 0 1 4680 46800
0 0 0 1 1 1 0 1 1 0 4720 47200
0 0 0 1 1 1 0 1 1 1 4760 47600
0 0 0 1 1 1 1 0 0 0 4800 48000
0 0 0 1 1 1 1 0 0 1 4840 48400
0 0 0 1 1 1 1 0 1 0 4880 48800
0 0 0 1 1 1 1 0 1 1 4920 49200
0 0 0 1 1 1 1 1 0 0 4960 49600
0 0 0 1 1 1 1 1 0 1 5000 50000
0 0 0 1 1 1 1 1 1 0 5040 50400
0 0 0 1 1 1 1 1 1 1 5080 50800
0 0 1 0 0 0 0 0 0 0 5120 51200
0 0 1 0 0 0 0 0 0 1 5160 51600
0 0 1 0 0 0 0 0 1 0 5200 52000
0 0 1 0 0 0 0 0 1 1 5240 52400
0 0 1 0 0 0 0 1 0 0 5280 52800
0 0 1 0 0 0 0 1 0 1 5320 53200
0 0 1 0 0 0 0 1 1 0 5360 53600
0 0 1 0 0 0 0 1 1 1 5400 54000
0 0 1 0 0 0 1 0 0 0 5440 54400
0 0 1 0 0 0 1 0 0 1 5480 54800
0 0 1 0 0 0 1 0 1 0 5520 55200
0 0 1 0 0 0 1 0 1 1 5560 55600
0 0 1 0 0 0 1 1 0 0 5600 56000
0 0 1 0 0 0 1 1 0 1 5640 56400
0 0 1 0 0 0 1 1 1 0 5680 56800
0 0 1 0 0 0 1 1 1 1 5720 57200
0 0 1 0 0 1 0 0 0 0 5760 57600
0 0 1 0 0 1 0 0 0 1 5800 58000
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 1 0 0 1 0 0 1 0 5840 58400
0 0 1 0 0 1 0 0 1 1 5880 58800
0 0 1 0 0 1 0 1 0 0 5920 59200
0 0 1 0 0 1 0 1 0 1 5960 59600
0 0 1 0 0 1 0 1 1 0 6000 60000
0 0 1 0 0 1 0 1 1 1 6040 60400
0 0 1 0 0 1 1 0 0 0 6080 60800
0 0 1 0 0 1 1 0 0 1 6120 61200
0 0 1 0 0 1 1 0 1 0 6160 61600
0 0 1 0 0 1 1 0 1 1 6200 62000
0 0 1 0 0 1 1 1 0 0 6240 62400
0 0 1 0 0 1 1 1 0 1 6280 62800
0 0 1 0 0 1 1 1 1 0 6320 63200
0 0 1 0 0 1 1 1 1 1 6360 63600
0 0 1 0 1 0 0 0 0 0 6400 64000
0 0 1 0 1 0 0 0 0 1 6440 64400
0 0 1 0 1 0 0 0 1 0 6480 64800
0 0 1 0 1 0 0 0 1 1 6520 65200
0 0 1 0 1 0 0 1 0 0 6560 65600
0 0 1 0 1 0 0 1 0 1 6600 66000
0 0 1 0 1 0 0 1 1 0 6640 66400
0 0 1 0 1 0 0 1 1 1 6680 66800
0 0 1 0 1 0 1 0 0 0 6720 67200
0 0 1 0 1 0 1 0 0 1 6760 67600
0 0 1 0 1 0 1 0 1 0 6800 68000
0 0 1 0 1 0 1 0 1 1 6840 68400
0 0 1 0 1 0 1 1 0 0 6880 68800
0 0 1 0 1 0 1 1 0 1 6920 69200
0 0 1 0 1 0 1 1 1 0 6960 69600
0 0 1 0 1 0 1 1 1 1 7000 70000
0 0 1 0 1 1 0 0 0 0 7040 70400
0 0 1 0 1 1 0 0 0 1 7080 70800
0 0 1 0 1 1 0 0 1 0 7120 71200
0 0 1 0 1 1 0 0 1 1 7160 71600
0 0 1 0 1 1 0 1 0 0 7200 72000
0 0 1 0 1 1 0 1 0 1 7240 72400
0 0 1 0 1 1 0 1 1 0 7280 72800
0 0 1 0 1 1 0 1 1 1 7320 73200
0 0 1 0 1 1 1 0 0 0 7360 73600
0 0 1 0 1 1 1 0 0 1 7400 74000
0 0 1 0 1 1 1 0 1 0 7440 74400
0 0 1 0 1 1 1 0 1 1 7480 74800
0 0 1 0 1 1 1 1 0 0 7520 75200
0 0 1 0 1 1 1 1 0 1 7560 75600
0 0 1 0 1 1 1 1 1 0 7600 76000
0 0 1 0 1 1 1 1 1 1 7640 76400
0 0 1 1 0 0 0 0 0 0 7680 76800
0 0 1 1 0 0 0 0 0 1 7720 77200
0 0 1 1 0 0 0 0 1 0 7760 77600
0 0 1 1 0 0 0 0 1 1 7800 78000
0 0 1 1 0 0 0 1 0 0 7840 78400
0 0 1 1 0 0 0 1 0 1 7880 78800
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 1 1 0 0 0 1 1 0 7920 79200
0 0 1 1 0 0 0 1 1 1 7960 79600
0 0 1 1 0 0 1 0 0 0 8000 80000
0 0 1 1 0 0 1 0 0 1 8040 80400
0 0 1 1 0 0 1 0 1 0 8080 80800
0 0 1 1 0 0 1 0 1 1 8120 81200
0 0 1 1 0 0 1 1 0 0 8160 81600
0 0 1 1 0 0 1 1 0 1 8200 82000
0 0 1 1 0 0 1 1 1 0 8240 82400
0 0 1 1 0 0 1 1 1 1 8280 82800
0 0 1 1 0 1 0 0 0 0 8320 83200
0 0 1 1 0 1 0 0 0 1 8360 83600
0 0 1 1 0 1 0 0 1 0 8400 84000
0 0 1 1 0 1 0 0 1 1 8440 84400
0 0 1 1 0 1 0 1 0 0 8480 84800
0 0 1 1 0 1 0 1 0 1 8520 85200
0 0 1 1 0 1 0 1 1 0 8560 85600
0 0 1 1 0 1 0 1 1 1 8600 86000
0 0 1 1 0 1 1 0 0 0 8640 86400
0 0 1 1 0 1 1 0 0 1 8680 86800
0 0 1 1 0 1 1 0 1 0 8720 87200
0 0 1 1 0 1 1 0 1 1 8760 87600
0 0 1 1 0 1 1 1 0 0 8800 88000
0 0 1 1 0 1 1 1 0 1 8840 88400
0 0 1 1 0 1 1 1 1 0 8880 88800
0 0 1 1 0 1 1 1 1 1 8920 89200
0 0 1 1 1 0 0 0 0 0 8960 89600
0 0 1 1 1 0 0 0 0 1 9000 90000
0 0 1 1 1 0 0 0 1 0 9040 90400
0 0 1 1 1 0 0 0 1 1 9080 90800
0 0 1 1 1 0 0 1 0 0 9120 91200
0 0 1 1 1 0 0 1 0 1 9160 91600
0 0 1 1 1 0 0 1 1 0 9200 92000
0 0 1 1 1 0 0 1 1 1 9240 92400
0 0 1 1 1 0 1 0 0 0 9280 92800
0 0 1 1 1 0 1 0 0 1 9320 93200
0 0 1 1 1 0 1 0 1 0 9360 93600
0 0 1 1 1 0 1 0 1 1 9400 94000
0 0 1 1 1 0 1 1 0 0 9440 94400
0 0 1 1 1 0 1 1 0 1 9480 94800
0 0 1 1 1 0 1 1 1 0 9520 95200
0 0 1 1 1 0 1 1 1 1 9560 95600
0 0 1 1 1 1 0 0 0 0 9600 96000
0 0 1 1 1 1 0 0 0 1 9640 96400
0 0 1 1 1 1 0 0 1 0 9680 96800
0 0 1 1 1 1 0 0 1 1 9720 97200
0 0 1 1 1 1 0 1 0 0 9760 97600
0 0 1 1 1 1 0 1 0 1 9800 98000
0 0 1 1 1 1 0 1 1 0 9840 98400
0 0 1 1 1 1 0 1 1 1 9880 98800
0 0 1 1 1 1 1 0 0 0 9920 99200
0 0 1 1 1 1 1 0 0 1 9960 99600
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 0 1 1 1 1 1 0 1 0 10000 100000
0 0 1 1 1 1 1 0 1 1 10040 100400
0 0 1 1 1 1 1 1 0 0 10080 100800
0 0 1 1 1 1 1 1 0 1 10120 101200
0 0 1 1 1 1 1 1 1 0 10160 101600
0 0 1 1 1 1 1 1 1 1 10200 102000
0 1 0 0 0 0 0 0 0 0 10240 102400
0 1 0 0 0 0 0 0 0 1 10280 102800
0 1 0 0 0 0 0 0 1 0 10320 103200
0 1 0 0 0 0 0 0 1 1 10360 103600
0 1 0 0 0 0 0 1 0 0 10400 104000
0 1 0 0 0 0 0 1 0 1 10440 104400
0 1 0 0 0 0 0 1 1 0 10480 104800
0 1 0 0 0 0 0 1 1 1 10520 105200
0 1 0 0 0 0 1 0 0 0 10560 105600
0 1 0 0 0 0 1 0 0 1 10600 106000
0 1 0 0 0 0 1 0 1 0 10640 106400
0 1 0 0 0 0 1 0 1 1 10680 106800
0 1 0 0 0 0 1 1 0 0 10720 107200
0 1 0 0 0 0 1 1 0 1 10760 107600
0 1 0 0 0 0 1 1 1 0 10800 108000
0 1 0 0 0 0 1 1 1 1 10840 108400
0 1 0 0 0 1 0 0 0 0 10880 108800
0 1 0 0 0 1 0 0 0 1 10920 109200
0 1 0 0 0 1 0 0 1 0 10960 109600
0 1 0 0 0 1 0 0 1 1 11000 110000
0 1 0 0 0 1 0 1 0 0 11040 110400
0 1 0 0 0 1 0 1 0 1 11080 110800
0 1 0 0 0 1 0 1 1 0 11120 111200
0 1 0 0 0 1 0 1 1 1 11160 111600
0 1 0 0 0 1 1 0 0 0 11200 112000
0 1 0 0 0 1 1 0 0 1 11240 112400
0 1 0 0 0 1 1 0 1 0 11280 112800
0 1 0 0 0 1 1 0 1 1 11320 113200
0 1 0 0 0 1 1 1 0 0 11360 113600
0 1 0 0 0 1 1 1 0 1 11400 114000
0 1 0 0 0 1 1 1 1 0 11440 114400
0 1 0 0 0 1 1 1 1 1 11480 114800
0 1 0 0 1 0 0 0 0 0 11520 115200
0 1 0 0 1 0 0 0 0 1 11560 115600
0 1 0 0 1 0 0 0 1 0 11600 116000
0 1 0 0 1 0 0 0 1 1 11640 116400
0 1 0 0 1 0 0 1 0 0 11680 116800
0 1 0 0 1 0 0 1 0 1 11720 117200
0 1 0 0 1 0 0 1 1 0 11760 117600
0 1 0 0 1 0 0 1 1 1 11800 118000
0 1 0 0 1 0 1 0 0 0 11840 118400
0 1 0 0 1 0 1 0 0 1 11880 118800
0 1 0 0 1 0 1 0 1 0 11920 119200
0 1 0 0 1 0 1 0 1 1 11960 119600
0 1 0 0 1 0 1 1 0 0 12000 120000
0 1 0 0 1 0 1 1 0 1 12040 120400
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 1 0 0 1 0 1 1 1 0 12080 120800
0 1 0 0 1 0 1 1 1 1 12120 121200
0 1 0 0 1 1 0 0 0 0 12160 121600
0 1 0 0 1 1 0 0 0 1 12200 122000
0 1 0 0 1 1 0 0 1 0 12240 122400
0 1 0 0 1 1 0 0 1 1 12280 122800
0 1 0 0 1 1 0 1 0 0 12320 123200
0 1 0 0 1 1 0 1 0 1 12360 123600
0 1 0 0 1 1 0 1 1 0 12400 124000
0 1 0 0 1 1 0 1 1 1 12440 124400
0 1 0 0 1 1 1 0 0 0 12480 124800
0 1 0 0 1 1 1 0 0 1 12520 125200
0 1 0 0 1 1 1 0 1 0 12560 125600
0 1 0 0 1 1 1 0 1 1 12600 126000
0 1 0 0 1 1 1 1 0 0 12640 126400
0 1 0 0 1 1 1 1 0 1 12680 126800
0 1 0 0 1 1 1 1 1 0 12720 127200
0 1 0 0 1 1 1 1 1 1 12760 127600
0 1 0 1 0 0 0 0 0 0 12800 128000
0 1 0 1 0 0 0 0 0 1 12840 128400
0 1 0 1 0 0 0 0 1 0 12880 128800
0 1 0 1 0 0 0 0 1 1 12920 129200
0 1 0 1 0 0 0 1 0 0 12960 129600
0 1 0 1 0 0 0 1 0 1 13000 130000
0 1 0 1 0 0 0 1 1 0 13040 130400
0 1 0 1 0 0 0 1 1 1 13080 130800
0 1 0 1 0 0 1 0 0 0 13120 131200
0 1 0 1 0 0 1 0 0 1 13160 131600
0 1 0 1 0 0 1 0 1 0 13200 132000
0 1 0 1 0 0 1 0 1 1 13240 132400
0 1 0 1 0 0 1 1 0 0 13280 132800
0 1 0 1 0 0 1 1 0 1 13320 133200
0 1 0 1 0 0 1 1 1 0 13360 133600
0 1 0 1 0 0 1 1 1 1 13400 134000
0 1 0 1 0 1 0 0 0 0 13440 134400
0 1 0 1 0 1 0 0 0 1 13480 134800
0 1 0 1 0 1 0 0 1 0 13520 135200
0 1 0 1 0 1 0 0 1 1 13560 135600
0 1 0 1 0 1 0 1 0 0 13600 136000
0 1 0 1 0 1 0 1 0 1 13640 136400
0 1 0 1 0 1 0 1 1 0 13680 136800
0 1 0 1 0 1 0 1 1 1 13720 137200
0 1 0 1 0 1 1 0 0 0 13760 137600
0 1 0 1 0 1 1 0 0 1 13800 138000
0 1 0 1 0 1 1 0 1 0 13840 138400
0 1 0 1 0 1 1 0 1 1 13880 138800
0 1 0 1 0 1 1 1 0 0 13920 139200
0 1 0 1 0 1 1 1 0 1 13960 139600
0 1 0 1 0 1 1 1 1 0 14000 140000
0 1 0 1 0 1 1 1 1 1 14040 140400
0 1 0 1 1 0 0 0 0 0 14080 140800
0 1 0 1 1 0 0 0 0 1 14120 141200
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 1 0 1 1 0 0 0 1 0 14160 141600
0 1 0 1 1 0 0 0 1 1 14200 142000
0 1 0 1 1 0 0 1 0 0 14240 142400
0 1 0 1 1 0 0 1 0 1 14280 142800
0 1 0 1 1 0 0 1 1 0 14320 143200
0 1 0 1 1 0 0 1 1 1 14360 143600
0 1 0 1 1 0 1 0 0 0 14400 144000
0 1 0 1 1 0 1 0 0 1 14440 144400
0 1 0 1 1 0 1 0 1 0 14480 144800
0 1 0 1 1 0 1 0 1 1 14520 145200
0 1 0 1 1 0 1 1 0 0 14560 145600
0 1 0 1 1 0 1 1 0 1 14600 146000
0 1 0 1 1 0 1 1 1 0 14640 146400
0 1 0 1 1 0 1 1 1 1 14680 146800
0 1 0 1 1 1 0 0 0 0 14720 147200
0 1 0 1 1 1 0 0 0 1 14760 147600
0 1 0 1 1 1 0 0 1 0 14800 148000
0 1 0 1 1 1 0 0 1 1 14840 148400
0 1 0 1 1 1 0 1 0 0 14880 148800
0 1 0 1 1 1 0 1 0 1 14920 149200
0 1 0 1 1 1 0 1 1 0 14960 149600
0 1 0 1 1 1 0 1 1 1 15000 150000
0 1 0 1 1 1 1 0 0 0 15040 150400
0 1 0 1 1 1 1 0 0 1 15080 150800
0 1 0 1 1 1 1 0 1 0 15120 151200
0 1 0 1 1 1 1 0 1 1 15160 151600
0 1 0 1 1 1 1 1 0 0 15200 152000
0 1 0 1 1 1 1 1 0 1 15240 152400
0 1 0 1 1 1 1 1 1 0 15280 152800
0 1 0 1 1 1 1 1 1 1 15320 153200
0 1 1 0 0 0 0 0 0 0 15360 153600
0 1 1 0 0 0 0 0 0 1 15400 154000
0 1 1 0 0 0 0 0 1 0 15440 154400
0 1 1 0 0 0 0 0 1 1 15480 154800
0 1 1 0 0 0 0 1 0 0 15520 155200
0 1 1 0 0 0 0 1 0 1 15560 155600
0 1 1 0 0 0 0 1 1 0 15600 156000
0 1 1 0 0 0 0 1 1 1 15640 156400
0 1 1 0 0 0 1 0 0 0 15680 156800
0 1 1 0 0 0 1 0 0 1 15720 157200
0 1 1 0 0 0 1 0 1 0 15760 157600
0 1 1 0 0 0 1 0 1 1 15800 158000
0 1 1 0 0 0 1 1 0 0 15840 158400
0 1 1 0 0 0 1 1 0 1 15880 158800
0 1 1 0 0 0 1 1 1 0 15920 159200
0 1 1 0 0 0 1 1 1 1 15960 159600
0 1 1 0 0 1 0 0 0 0 16000 160000
0 1 1 0 0 1 0 0 0 1 16040 160400
0 1 1 0 0 1 0 0 1 0 16080 160800
0 1 1 0 0 1 0 0 1 1 16120 161200
0 1 1 0 0 1 0 1 0 0 16160 161600
0 1 1 0 0 1 0 1 0 1 16200 162000
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 1 1 0 0 1 0 1 1 0 16240 162400
0 1 1 0 0 1 0 1 1 1 16280 162800
0 1 1 0 0 1 1 0 0 0 16320 163200
0 1 1 0 0 1 1 0 0 1 16360 163600
0 1 1 0 0 1 1 0 1 0 16400 164000
0 1 1 0 0 1 1 0 1 1 16440 164400
0 1 1 0 0 1 1 1 0 0 16480 164800
0 1 1 0 0 1 1 1 0 1 16520 165200
0 1 1 0 0 1 1 1 1 0 16560 165600
0 1 1 0 0 1 1 1 1 1 16600 166000
0 1 1 0 1 0 0 0 0 0 16640 166400
0 1 1 0 1 0 0 0 0 1 16680 166800
0 1 1 0 1 0 0 0 1 0 16720 167200
0 1 1 0 1 0 0 0 1 1 16760 167600
0 1 1 0 1 0 0 1 0 0 16800 168000
0 1 1 0 1 0 0 1 0 1 16840 168400
0 1 1 0 1 0 0 1 1 0 16880 168800
0 1 1 0 1 0 0 1 1 1 16920 169200
0 1 1 0 1 0 1 0 0 0 16960 169600
0 1 1 0 1 0 1 0 0 1 17000 170000
0 1 1 0 1 0 1 0 1 0 17040 170400
0 1 1 0 1 0 1 0 1 1 17080 170800
0 1 1 0 1 0 1 1 0 0 17120 171200
0 1 1 0 1 0 1 1 0 1 17160 171600
0 1 1 0 1 0 1 1 1 0 17200 172000
0 1 1 0 1 0 1 1 1 1 17240 172400
0 1 1 0 1 1 0 0 0 0 17280 172800
0 1 1 0 1 1 0 0 0 1 17320 173200
0 1 1 0 1 1 0 0 1 0 17360 173600
0 1 1 0 1 1 0 0 1 1 17400 174000
0 1 1 0 1 1 0 1 0 0 17440 174400
0 1 1 0 1 1 0 1 0 1 17480 174800
0 1 1 0 1 1 0 1 1 0 17520 175200
0 1 1 0 1 1 0 1 1 1 17560 175600
0 1 1 0 1 1 1 0 0 0 17600 176000
0 1 1 0 1 1 1 0 0 1 17640 176400
0 1 1 0 1 1 1 0 1 0 17680 176800
0 1 1 0 1 1 1 0 1 1 17720 177200
0 1 1 0 1 1 1 1 0 0 17760 177600
0 1 1 0 1 1 1 1 0 1 17800 178000
0 1 1 0 1 1 1 1 1 0 17840 178400
0 1 1 0 1 1 1 1 1 1 17880 178800
0 1 1 1 0 0 0 0 0 0 17920 179200
0 1 1 1 0 0 0 0 0 1 17960 179600
0 1 1 1 0 0 0 0 1 0 18000 180000
0 1 1 1 0 0 0 0 1 1 18040 180400
0 1 1 1 0 0 0 1 0 0 18080 180800
0 1 1 1 0 0 0 1 0 1 18120 181200
0 1 1 1 0 0 0 1 1 0 18160 181600
0 1 1 1 0 0 0 1 1 1 18200 182000
0 1 1 1 0 0 1 0 0 0 18240 182400
0 1 1 1 0 0 1 0 0 1 18280 182800
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 1 1 1 0 0 1 0 1 0 18320 183200
0 1 1 1 0 0 1 0 1 1 18360 183600
0 1 1 1 0 0 1 1 0 0 18400 184000
0 1 1 1 0 0 1 1 0 1 18440 184400
0 1 1 1 0 0 1 1 1 0 18480 184800
0 1 1 1 0 0 1 1 1 1 18520 185200
0 1 1 1 0 1 0 0 0 0 18560 185600
0 1 1 1 0 1 0 0 0 1 18600 186000
0 1 1 1 0 1 0 0 1 0 18640 186400
0 1 1 1 0 1 0 0 1 1 18680 186800
0 1 1 1 0 1 0 1 0 0 18720 187200
0 1 1 1 0 1 0 1 0 1 18760 187600
0 1 1 1 0 1 0 1 1 0 18800 188000
0 1 1 1 0 1 0 1 1 1 18840 188400
0 1 1 1 0 1 1 0 0 0 18880 188800
0 1 1 1 0 1 1 0 0 1 18920 189200
0 1 1 1 0 1 1 0 1 0 18960 189600
0 1 1 1 0 1 1 0 1 1 19000 190000
0 1 1 1 0 1 1 1 0 0 19040 190400
0 1 1 1 0 1 1 1 0 1 19080 190800
0 1 1 1 0 1 1 1 1 0 19120 191200
0 1 1 1 0 1 1 1 1 1 19160 191600
0 1 1 1 1 0 0 0 0 0 19200 192000
0 1 1 1 1 0 0 0 0 1 19240 192400
0 1 1 1 1 0 0 0 1 0 19280 192800
0 1 1 1 1 0 0 0 1 1 19320 193200
0 1 1 1 1 0 0 1 0 0 19360 193600
0 1 1 1 1 0 0 1 0 1 19400 194000
0 1 1 1 1 0 0 1 1 0 19440 194400
0 1 1 1 1 0 0 1 1 1 19480 194800
0 1 1 1 1 0 1 0 0 0 19520 195200
0 1 1 1 1 0 1 0 0 1 19560 195600
0 1 1 1 1 0 1 0 1 0 19600 196000
0 1 1 1 1 0 1 0 1 1 19640 196400
0 1 1 1 1 0 1 1 0 0 19680 196800
0 1 1 1 1 0 1 1 0 1 19720 197200
0 1 1 1 1 0 1 1 1 0 19760 197600
0 1 1 1 1 0 1 1 1 1 19800 198000
0 1 1 1 1 1 0 0 0 0 19840 198400
0 1 1 1 1 1 0 0 0 1 19880 198800
0 1 1 1 1 1 0 0 1 0 19920 199200
0 1 1 1 1 1 0 0 1 1 19960 199600
0 1 1 1 1 1 0 1 0 0 20000 200000
0 1 1 1 1 1 0 1 0 1 20040 200400
0 1 1 1 1 1 0 1 1 0 20080 200800
0 1 1 1 1 1 0 1 1 1 20120 201200
0 1 1 1 1 1 1 0 0 0 20160 201600
0 1 1 1 1 1 1 0 0 1 20200 202000
0 1 1 1 1 1 1 0 1 0 20240 202400
0 1 1 1 1 1 1 0 1 1 20280 202800
0 1 1 1 1 1 1 1 0 0 20320 203200
0 1 1 1 1 1 1 1 0 1 20360 203600
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
0 1 1 1 1 1 1 1 1 0 20400 204000
0 1 1 1 1 1 1 1 1 1 20440 204400
1 0 0 0 0 0 0 0 0 0 20480 204800
1 0 0 0 0 0 0 0 0 1 20520 205200
1 0 0 0 0 0 0 0 1 0 20560 205600
1 0 0 0 0 0 0 0 1 1 20600 206000
1 0 0 0 0 0 0 1 0 0 20640 206400
1 0 0 0 0 0 0 1 0 1 20680 206800
1 0 0 0 0 0 0 1 1 0 20720 207200
1 0 0 0 0 0 0 1 1 1 20760 207600
1 0 0 0 0 0 1 0 0 0 20800 208000
1 0 0 0 0 0 1 0 0 1 20840 208400
1 0 0 0 0 0 1 0 1 0 20880 208800
1 0 0 0 0 0 1 0 1 1 20920 209200
1 0 0 0 0 0 1 1 0 0 20960 209600
1 0 0 0 0 0 1 1 0 1 21000 210000
1 0 0 0 0 0 1 1 1 0 21040 210400
1 0 0 0 0 0 1 1 1 1 21080 210800
1 0 0 0 0 1 0 0 0 0 21120 211200
1 0 0 0 0 1 0 0 0 1 21160 211600
1 0 0 0 0 1 0 0 1 0 21200 212000
1 0 0 0 0 1 0 0 1 1 21240 212400
1 0 0 0 0 1 0 1 0 0 21280 212800
1 0 0 0 0 1 0 1 0 1 21320 213200
1 0 0 0 0 1 0 1 1 0 21360 213600
1 0 0 0 0 1 0 1 1 1 21400 214000
1 0 0 0 0 1 1 0 0 0 21440 214400
1 0 0 0 0 1 1 0 0 1 21480 214800
1 0 0 0 0 1 1 0 1 0 21520 215200
1 0 0 0 0 1 1 0 1 1 21560 215600
1 0 0 0 0 1 1 1 0 0 21600 216000
1 0 0 0 0 1 1 1 0 1 21640 216400
1 0 0 0 0 1 1 1 1 0 21680 216800
1 0 0 0 0 1 1 1 1 1 21720 217200
1 0 0 0 1 0 0 0 0 0 21760 217600
1 0 0 0 1 0 0 0 0 1 21800 218000
1 0 0 0 1 0 0 0 1 0 21840 218400
1 0 0 0 1 0 0 0 1 1 21880 218800
1 0 0 0 1 0 0 1 0 0 21920 219200
1 0 0 0 1 0 0 1 0 1 21960 219600
1 0 0 0 1 0 0 1 1 0 22000 220000
1 0 0 0 1 0 0 1 1 1 22040 220400
1 0 0 0 1 0 1 0 0 0 22080 220800
1 0 0 0 1 0 1 0 0 1 22120 221200
1 0 0 0 1 0 1 0 1 0 22160 221600
1 0 0 0 1 0 1 0 1 1 22200 222000
1 0 0 0 1 0 1 1 0 0 22240 222400
1 0 0 0 1 0 1 1 0 1 22280 222800
1 0 0 0 1 0 1 1 1 0 22320 223200
1 0 0 0 1 0 1 1 1 1 22360 223600
1 0 0 0 1 1 0 0 0 0 22400 224000
1 0 0 0 1 1 0 0 0 1 22440 224400
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 0 0 0 1 1 0 0 1 0 22480 224800
1 0 0 0 1 1 0 0 1 1 22520 225200
1 0 0 0 1 1 0 1 0 0 22560 225600
1 0 0 0 1 1 0 1 0 1 22600 226000
1 0 0 0 1 1 0 1 1 0 22640 226400
1 0 0 0 1 1 0 1 1 1 22680 226800
1 0 0 0 1 1 1 0 0 0 22720 227200
1 0 0 0 1 1 1 0 0 1 22760 227600
1 0 0 0 1 1 1 0 1 0 22800 228000
1 0 0 0 1 1 1 0 1 1 22840 228400
1 0 0 0 1 1 1 1 0 0 22880 228800
1 0 0 0 1 1 1 1 0 1 22920 229200
1 0 0 0 1 1 1 1 1 0 22960 229600
1 0 0 0 1 1 1 1 1 1 23000 230000
1 0 0 1 0 0 0 0 0 0 23040 230400
1 0 0 1 0 0 0 0 0 1 23080 230800
1 0 0 1 0 0 0 0 1 0 23120 231200
1 0 0 1 0 0 0 0 1 1 23160 231600
1 0 0 1 0 0 0 1 0 0 23200 232000
1 0 0 1 0 0 0 1 0 1 23240 232400
1 0 0 1 0 0 0 1 1 0 23280 232800
1 0 0 1 0 0 0 1 1 1 23320 233200
1 0 0 1 0 0 1 0 0 0 23360 233600
1 0 0 1 0 0 1 0 0 1 23400 234000
1 0 0 1 0 0 1 0 1 0 23440 234400
1 0 0 1 0 0 1 0 1 1 23480 234800
1 0 0 1 0 0 1 1 0 0 23520 235200
1 0 0 1 0 0 1 1 0 1 23560 235600
1 0 0 1 0 0 1 1 1 0 23600 236000
1 0 0 1 0 0 1 1 1 1 23640 236400
1 0 0 1 0 1 0 0 0 0 23680 236800
1 0 0 1 0 1 0 0 0 1 23720 237200
1 0 0 1 0 1 0 0 1 0 23760 237600
1 0 0 1 0 1 0 0 1 1 23800 238000
1 0 0 1 0 1 0 1 0 0 23840 238400
1 0 0 1 0 1 0 1 0 1 23880 238800
1 0 0 1 0 1 0 1 1 0 23920 239200
1 0 0 1 0 1 0 1 1 1 23960 239600
1 0 0 1 0 1 1 0 0 0 24000 240000
1 0 0 1 0 1 1 0 0 1 24040 240400
1 0 0 1 0 1 1 0 1 0 24080 240800
1 0 0 1 0 1 1 0 1 1 24120 241200
1 0 0 1 0 1 1 1 0 0 24160 241600
1 0 0 1 0 1 1 1 0 1 24200 242000
1 0 0 1 0 1 1 1 1 0 24240 242400
1 0 0 1 0 1 1 1 1 1 24280 242800
1 0 0 1 1 0 0 0 0 0 24320 243200
1 0 0 1 1 0 0 0 0 1 24360 243600
1 0 0 1 1 0 0 0 1 0 24400 244000
1 0 0 1 1 0 0 0 1 1 24440 244400
1 0 0 1 1 0 0 1 0 0 24480 244800
1 0 0 1 1 0 0 1 0 1 24520 245200
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 0 0 1 1 0 0 1 1 0 24560 245600
1 0 0 1 1 0 0 1 1 1 24600 246000
1 0 0 1 1 0 1 0 0 0 24640 246400
1 0 0 1 1 0 1 0 0 1 24680 246800
1 0 0 1 1 0 1 0 1 0 24720 247200
1 0 0 1 1 0 1 0 1 1 24760 247600
1 0 0 1 1 0 1 1 0 0 24800 248000
1 0 0 1 1 0 1 1 0 1 24840 248400
1 0 0 1 1 0 1 1 1 0 24880 248800
1 0 0 1 1 0 1 1 1 1 24920 249200
1 0 0 1 1 1 0 0 0 0 24960 249600
1 0 0 1 1 1 0 0 0 1 25000 250000
1 0 0 1 1 1 0 0 1 0 25040 250400
1 0 0 1 1 1 0 0 1 1 25080 250800
1 0 0 1 1 1 0 1 0 0 25120 251200
1 0 0 1 1 1 0 1 0 1 25160 251600
1 0 0 1 1 1 0 1 1 0 25200 252000
1 0 0 1 1 1 0 1 1 1 25240 252400
1 0 0 1 1 1 1 0 0 0 25280 252800
1 0 0 1 1 1 1 0 0 1 25320 253200
1 0 0 1 1 1 1 0 1 0 25360 253600
1 0 0 1 1 1 1 0 1 1 25400 254000
1 0 0 1 1 1 1 1 0 0 25440 254400
1 0 0 1 1 1 1 1 0 1 25480 254800
1 0 0 1 1 1 1 1 1 0 25520 255200
1 0 0 1 1 1 1 1 1 1 25560 255600
1 0 1 0 0 0 0 0 0 0 25600 256000
1 0 1 0 0 0 0 0 0 1 25640 256400
1 0 1 0 0 0 0 0 1 0 25680 256800
1 0 1 0 0 0 0 0 1 1 25720 257200
1 0 1 0 0 0 0 1 0 0 25760 257600
1 0 1 0 0 0 0 1 0 1 25800 258000
1 0 1 0 0 0 0 1 1 0 25840 258400
1 0 1 0 0 0 0 1 1 1 25880 258800
1 0 1 0 0 0 1 0 0 0 25920 259200
1 0 1 0 0 0 1 0 0 1 25960 259600
1 0 1 0 0 0 1 0 1 0 26000 260000
1 0 1 0 0 0 1 0 1 1 26040 260400
1 0 1 0 0 0 1 1 0 0 26080 260800
1 0 1 0 0 0 1 1 0 1 26120 261200
1 0 1 0 0 0 1 1 1 0 26160 261600
1 0 1 0 0 0 1 1 1 1 26200 262000
1 0 1 0 0 1 0 0 0 0 26240 262400
1 0 1 0 0 1 0 0 0 1 26280 262800
1 0 1 0 0 1 0 0 1 0 26320 263200
1 0 1 0 0 1 0 0 1 1 26360 263600
1 0 1 0 0 1 0 1 0 0 26400 264000
1 0 1 0 0 1 0 1 0 1 26440 264400
1 0 1 0 0 1 0 1 1 0 26480 264800
1 0 1 0 0 1 0 1 1 1 26520 265200
1 0 1 0 0 1 1 0 0 0 26560 265600
1 0 1 0 0 1 1 0 0 1 26600 266000
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 0 1 0 0 1 1 0 1 0 26640 266400
1 0 1 0 0 1 1 0 1 1 26680 266800
1 0 1 0 0 1 1 1 0 0 26720 267200
1 0 1 0 0 1 1 1 0 1 26760 267600
1 0 1 0 0 1 1 1 1 0 26800 268000
1 0 1 0 0 1 1 1 1 1 26840 268400
1 0 1 0 1 0 0 0 0 0 26880 268800
1 0 1 0 1 0 0 0 0 1 26920 269200
1 0 1 0 1 0 0 0 1 0 26960 269600
1 0 1 0 1 0 0 0 1 1 27000 270000
1 0 1 0 1 0 0 1 0 0 27040 270400
1 0 1 0 1 0 0 1 0 1 27080 270800
1 0 1 0 1 0 0 1 1 0 27120 271200
1 0 1 0 1 0 0 1 1 1 27160 271600
1 0 1 0 1 0 1 0 0 0 27200 272000
1 0 1 0 1 0 1 0 0 1 27240 272400
1 0 1 0 1 0 1 0 1 0 27280 272800
1 0 1 0 1 0 1 0 1 1 27320 273200
1 0 1 0 1 0 1 1 0 0 27360 273600
1 0 1 0 1 0 1 1 0 1 27400 274000
1 0 1 0 1 0 1 1 1 0 27440 274400
1 0 1 0 1 0 1 1 1 1 27480 274800
1 0 1 0 1 1 0 0 0 0 27520 275200
1 0 1 0 1 1 0 0 0 1 27560 275600
1 0 1 0 1 1 0 0 1 0 27600 276000
1 0 1 0 1 1 0 0 1 1 27640 276400
1 0 1 0 1 1 0 1 0 0 27680 276800
1 0 1 0 1 1 0 1 0 1 27720 277200
1 0 1 0 1 1 0 1 1 0 27760 277600
1 0 1 0 1 1 0 1 1 1 27800 278000
1 0 1 0 1 1 1 0 0 0 27840 278400
1 0 1 0 1 1 1 0 0 1 27880 278800
1 0 1 0 1 1 1 0 1 0 27920 279200
1 0 1 0 1 1 1 0 1 1 27960 279600
1 0 1 0 1 1 1 1 0 0 28000 280000
1 0 1 0 1 1 1 1 0 1 28040 280400
1 0 1 0 1 1 1 1 1 0 28080 280800
1 0 1 0 1 1 1 1 1 1 28120 281200
1 0 1 1 0 0 0 0 0 0 28160 281600
1 0 1 1 0 0 0 0 0 1 28200 282000
1 0 1 1 0 0 0 0 1 0 28240 282400
1 0 1 1 0 0 0 0 1 1 28280 282800
1 0 1 1 0 0 0 1 0 0 28320 283200
1 0 1 1 0 0 0 1 0 1 28360 283600
1 0 1 1 0 0 0 1 1 0 28400 284000
1 0 1 1 0 0 0 1 1 1 28440 284400
1 0 1 1 0 0 1 0 0 0 28480 284800
1 0 1 1 0 0 1 0 0 1 28520 285200
1 0 1 1 0 0 1 0 1 0 28560 285600
1 0 1 1 0 0 1 0 1 1 28600 286000
1 0 1 1 0 0 1 1 0 0 28640 286400
1 0 1 1 0 0 1 1 0 1 28680 286800
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 0 1 1 0 0 1 1 1 0 28720 287200
1 0 1 1 0 0 1 1 1 1 28760 287600
1 0 1 1 0 1 0 0 0 0 28800 288000
1 0 1 1 0 1 0 0 0 1 28840 288400
1 0 1 1 0 1 0 0 1 0 28880 288800
1 0 1 1 0 1 0 0 1 1 28920 289200
1 0 1 1 0 1 0 1 0 0 28960 289600
1 0 1 1 0 1 0 1 0 1 29000 290000
1 0 1 1 0 1 0 1 1 0 29040 290400
1 0 1 1 0 1 0 1 1 1 29080 290800
1 0 1 1 0 1 1 0 0 0 29120 291200
1 0 1 1 0 1 1 0 0 1 29160 291600
1 0 1 1 0 1 1 0 1 0 29200 292000
1 0 1 1 0 1 1 0 1 1 29240 292400
1 0 1 1 0 1 1 1 0 0 29280 292800
1 0 1 1 0 1 1 1 0 1 29320 293200
1 0 1 1 0 1 1 1 1 0 29360 293600
1 0 1 1 0 1 1 1 1 1 29400 294000
1 0 1 1 1 0 0 0 0 0 29440 294400
1 0 1 1 1 0 0 0 0 1 29480 294800
1 0 1 1 1 0 0 0 1 0 29520 295200
1 0 1 1 1 0 0 0 1 1 29560 295600
1 0 1 1 1 0 0 1 0 0 29600 296000
1 0 1 1 1 0 0 1 0 1 29640 296400
1 0 1 1 1 0 0 1 1 0 29680 296800
1 0 1 1 1 0 0 1 1 1 29720 297200
1 0 1 1 1 0 1 0 0 0 29760 297600
1 0 1 1 1 0 1 0 0 1 29800 298000
1 0 1 1 1 0 1 0 1 0 29840 298400
1 0 1 1 1 0 1 0 1 1 29880 298800
1 0 1 1 1 0 1 1 0 0 29920 299200
1 0 1 1 1 0 1 1 0 1 29960 299600
1 0 1 1 1 0 1 1 1 0 30000 300000
1 0 1 1 1 0 1 1 1 1 30040 300400
1 0 1 1 1 1 0 0 0 0 30080 300800
1 0 1 1 1 1 0 0 0 1 30120 301200
1 0 1 1 1 1 0 0 1 0 30160 301600
1 0 1 1 1 1 0 0 1 1 30200 302000
1 0 1 1 1 1 0 1 0 0 30240 302400
1 0 1 1 1 1 0 1 0 1 30280 302800
1 0 1 1 1 1 0 1 1 0 30320 303200
1 0 1 1 1 1 0 1 1 1 30360 303600
1 0 1 1 1 1 1 0 0 0 30400 304000
1 0 1 1 1 1 1 0 0 1 30440 304400
1 0 1 1 1 1 1 0 1 0 30480 304800
1 0 1 1 1 1 1 0 1 1 30520 305200
1 0 1 1 1 1 1 1 0 0 30560 305600
1 0 1 1 1 1 1 1 0 1 30600 306000
1 0 1 1 1 1 1 1 1 0 30640 306400
1 0 1 1 1 1 1 1 1 1 30680 306800
1 1 0 0 0 0 0 0 0 0 30720 307200
1 1 0 0 0 0 0 0 0 1 30760 307600
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 1 0 0 0 0 0 0 1 0 30800 308000
1 1 0 0 0 0 0 0 1 1 30840 308400
1 1 0 0 0 0 0 1 0 0 30880 308800
1 1 0 0 0 0 0 1 0 1 30920 309200
1 1 0 0 0 0 0 1 1 0 30960 309600
1 1 0 0 0 0 0 1 1 1 31000 310000
1 1 0 0 0 0 1 0 0 0 31040 310400
1 1 0 0 0 0 1 0 0 1 31080 310800
1 1 0 0 0 0 1 0 1 0 31120 311200
1 1 0 0 0 0 1 0 1 1 31160 311600
1 1 0 0 0 0 1 1 0 0 31200 312000
1 1 0 0 0 0 1 1 0 1 31240 312400
1 1 0 0 0 0 1 1 1 0 31280 312800
1 1 0 0 0 0 1 1 1 1 31320 313200
1 1 0 0 0 1 0 0 0 0 31360 313600
1 1 0 0 0 1 0 0 0 1 31400 314000
1 1 0 0 0 1 0 0 1 0 31440 314400
1 1 0 0 0 1 0 0 1 1 31480 314800
1 1 0 0 0 1 0 1 0 0 31520 315200
1 1 0 0 0 1 0 1 0 1 31560 315600
1 1 0 0 0 1 0 1 1 0 31600 316000
1 1 0 0 0 1 0 1 1 1 31640 316400
1 1 0 0 0 1 1 0 0 0 31680 316800
1 1 0 0 0 1 1 0 0 1 31720 317200
1 1 0 0 0 1 1 0 1 0 31760 317600
1 1 0 0 0 1 1 0 1 1 31800 318000
1 1 0 0 0 1 1 1 0 0 31840 318400
1 1 0 0 0 1 1 1 0 1 31880 318800
1 1 0 0 0 1 1 1 1 0 31920 319200
1 1 0 0 0 1 1 1 1 1 31960 319600
1 1 0 0 1 0 0 0 0 0 32000 320000
1 1 0 0 1 0 0 0 0 1 32040 320400
1 1 0 0 1 0 0 0 1 0 32080 320800
1 1 0 0 1 0 0 0 1 1 32120 321200
1 1 0 0 1 0 0 1 0 0 32160 321600
1 1 0 0 1 0 0 1 0 1 32200 322000
1 1 0 0 1 0 0 1 1 0 32240 322400
1 1 0 0 1 0 0 1 1 1 32280 322800
1 1 0 0 1 0 1 0 0 0 32320 323200
1 1 0 0 1 0 1 0 0 1 32360 323600
1 1 0 0 1 0 1 0 1 0 32400 324000
1 1 0 0 1 0 1 0 1 1 32440 324400
1 1 0 0 1 0 1 1 0 0 32480 324800
1 1 0 0 1 0 1 1 0 1 32520 325200
1 1 0 0 1 0 1 1 1 0 32560 325600
1 1 0 0 1 0 1 1 1 1 32600 326000
1 1 0 0 1 1 0 0 0 0 32640 326400
1 1 0 0 1 1 0 0 0 1 32680 326800
1 1 0 0 1 1 0 0 1 0 32720 327200
1 1 0 0 1 1 0 0 1 1 32760 327600
1 1 0 0 1 1 0 1 0 0 32800 328000
1 1 0 0 1 1 0 1 0 1 32840 328400
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 1 0 0 1 1 0 1 1 0 32880 328800
1 1 0 0 1 1 0 1 1 1 32920 329200
1 1 0 0 1 1 1 0 0 0 32960 329600
1 1 0 0 1 1 1 0 0 1 33000 330000
1 1 0 0 1 1 1 0 1 0 33040 330400
1 1 0 0 1 1 1 0 1 1 33080 330800
1 1 0 0 1 1 1 1 0 0 33120 331200
1 1 0 0 1 1 1 1 0 1 33160 331600
1 1 0 0 1 1 1 1 1 0 33200 332000
1 1 0 0 1 1 1 1 1 1 33240 332400
1 1 0 1 0 0 0 0 0 0 33280 332800
1 1 0 1 0 0 0 0 0 1 33320 333200
1 1 0 1 0 0 0 0 1 0 33360 333600
1 1 0 1 0 0 0 0 1 1 33400 334000
1 1 0 1 0 0 0 1 0 0 33440 334400
1 1 0 1 0 0 0 1 0 1 33480 334800
1 1 0 1 0 0 0 1 1 0 33520 335200
1 1 0 1 0 0 0 1 1 1 33560 335600
1 1 0 1 0 0 1 0 0 0 33600 336000
1 1 0 1 0 0 1 0 0 1 33640 336400
1 1 0 1 0 0 1 0 1 0 33680 336800
1 1 0 1 0 0 1 0 1 1 33720 337200
1 1 0 1 0 0 1 1 0 0 33760 337600
1 1 0 1 0 0 1 1 0 1 33800 338000
1 1 0 1 0 0 1 1 1 0 33840 338400
1 1 0 1 0 0 1 1 1 1 33880 338800
1 1 0 1 0 1 0 0 0 0 33920 339200
1 1 0 1 0 1 0 0 0 1 33960 339600
1 1 0 1 0 1 0 0 1 0 34000 340000
1 1 0 1 0 1 0 0 1 1 34040 340400
1 1 0 1 0 1 0 1 0 0 34080 340800
1 1 0 1 0 1 0 1 0 1 34120 341200
1 1 0 1 0 1 0 1 1 0 34160 341600
1 1 0 1 0 1 0 1 1 1 34200 342000
1 1 0 1 0 1 1 0 0 0 34240 342400
1 1 0 1 0 1 1 0 0 1 34280 342800
1 1 0 1 0 1 1 0 1 0 34320 343200
1 1 0 1 0 1 1 0 1 1 34360 343600
1 1 0 1 0 1 1 1 0 0 34400 344000
1 1 0 1 0 1 1 1 0 1 34440 344400
1 1 0 1 0 1 1 1 1 0 34480 344800
1 1 0 1 0 1 1 1 1 1 34520 345200
1 1 0 1 1 0 0 0 0 0 34560 345600
1 1 0 1 1 0 0 0 0 1 34600 346000
1 1 0 1 1 0 0 0 1 0 34640 346400
1 1 0 1 1 0 0 0 1 1 34680 346800
1 1 0 1 1 0 0 1 0 0 34720 347200
1 1 0 1 1 0 0 1 0 1 34760 347600
1 1 0 1 1 0 0 1 1 0 34800 348000
1 1 0 1 1 0 0 1 1 1 34840 348400
1 1 0 1 1 0 1 0 0 0 34880 348800
1 1 0 1 1 0 1 0 0 1 34920 349200
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 1 0 1 1 0 1 0 1 0 34960 349600
1 1 0 1 1 0 1 0 1 1 35000 350000
1 1 0 1 1 0 1 1 0 0 35040 350400
1 1 0 1 1 0 1 1 0 1 35080 350800
1 1 0 1 1 0 1 1 1 0 35120 351200
1 1 0 1 1 0 1 1 1 1 35160 351600
1 1 0 1 1 1 0 0 0 0 35200 352000
1 1 0 1 1 1 0 0 0 1 35240 352400
1 1 0 1 1 1 0 0 1 0 35280 352800
1 1 0 1 1 1 0 0 1 1 35320 353200
1 1 0 1 1 1 0 1 0 0 35360 353600
1 1 0 1 1 1 0 1 0 1 35400 354000
1 1 0 1 1 1 0 1 1 0 35440 354400
1 1 0 1 1 1 0 1 1 1 35480 354800
1 1 0 1 1 1 1 0 0 0 35520 355200
1 1 0 1 1 1 1 0 0 1 35560 355600
1 1 0 1 1 1 1 0 1 0 35600 356000
1 1 0 1 1 1 1 0 1 1 35640 356400
1 1 0 1 1 1 1 1 0 0 35680 356800
1 1 0 1 1 1 1 1 0 1 35720 357200
1 1 0 1 1 1 1 1 1 0 35760 357600
1 1 0 1 1 1 1 1 1 1 35800 358000
1 1 1 0 0 0 0 0 0 0 35840 358400
1 1 1 0 0 0 0 0 0 1 35880 358800
1 1 1 0 0 0 0 0 1 0 35920 359200
1 1 1 0 0 0 0 0 1 1 35960 359600
1 1 1 0 0 0 0 1 0 0 36000 360000
1 1 1 0 0 0 0 1 0 1 36040 360400
1 1 1 0 0 0 0 1 1 0 36080 360800
1 1 1 0 0 0 0 1 1 1 36120 361200
1 1 1 0 0 0 1 0 0 0 36160 361600
1 1 1 0 0 0 1 0 0 1 36200 362000
1 1 1 0 0 0 1 0 1 0 36240 362400
1 1 1 0 0 0 1 0 1 1 36280 362800
1 1 1 0 0 0 1 1 0 0 36320 363200
1 1 1 0 0 0 1 1 0 1 36360 363600
1 1 1 0 0 0 1 1 1 0 36400 364000
1 1 1 0 0 0 1 1 1 1 36440 364400
1 1 1 0 0 1 0 0 0 0 36480 364800
1 1 1 0 0 1 0 0 0 1 36520 365200
1 1 1 0 0 1 0 0 1 0 36560 365600
1 1 1 0 0 1 0 0 1 1 36600 366000
1 1 1 0 0 1 0 1 0 0 36640 366400
1 1 1 0 0 1 0 1 0 1 36680 366800
1 1 1 0 0 1 0 1 1 0 36720 367200
1 1 1 0 0 1 0 1 1 1 36760 367600
1 1 1 0 0 1 1 0 0 0 36800 368000
1 1 1 0 0 1 1 0 0 1 36840 368400
1 1 1 0 0 1 1 0 1 0 36880 368800
1 1 1 0 0 1 1 0 1 1 36920 369200
1 1 1 0 0 1 1 1 0 0 36960 369600
1 1 1 0 0 1 1 1 0 1 37000 370000
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 1 1 0 0 1 1 1 1 0 37040 370400
1 1 1 0 0 1 1 1 1 1 37080 370800
1 1 1 0 1 0 0 0 0 0 37120 371200
1 1 1 0 1 0 0 0 0 1 37160 371600
1 1 1 0 1 0 0 0 1 0 37200 372000
1 1 1 0 1 0 0 0 1 1 37240 372400
1 1 1 0 1 0 0 1 0 0 37280 372800
1 1 1 0 1 0 0 1 0 1 37320 373200
1 1 1 0 1 0 0 1 1 0 37360 373600
1 1 1 0 1 0 0 1 1 1 37400 374000
1 1 1 0 1 0 1 0 0 0 37440 374400
1 1 1 0 1 0 1 0 0 1 37480 374800
1 1 1 0 1 0 1 0 1 0 37520 375200
1 1 1 0 1 0 1 0 1 1 37560 375600
1 1 1 0 1 0 1 1 0 0 37600 376000
1 1 1 0 1 0 1 1 0 1 37640 376400
1 1 1 0 1 0 1 1 1 0 37680 376800
1 1 1 0 1 0 1 1 1 1 37720 377200
1 1 1 0 1 1 0 0 0 0 37760 377600
1 1 1 0 1 1 0 0 0 1 37800 378000
1 1 1 0 1 1 0 0 1 0 37840 378400
1 1 1 0 1 1 0 0 1 1 37880 378800
1 1 1 0 1 1 0 1 0 0 37920 379200
1 1 1 0 1 1 0 1 0 1 37960 379600
1 1 1 0 1 1 0 1 1 0 38000 380000
1 1 1 0 1 1 0 1 1 1 38040 380400
1 1 1 0 1 1 1 0 0 0 38080 380800
1 1 1 0 1 1 1 0 0 1 38120 381200
1 1 1 0 1 1 1 0 1 0 38160 381600
1 1 1 0 1 1 1 0 1 1 38200 382000
1 1 1 0 1 1 1 1 0 0 38240 382400
1 1 1 0 1 1 1 1 0 1 38280 382800
1 1 1 0 1 1 1 1 1 0 38320 383200
1 1 1 0 1 1 1 1 1 1 38360 383600
1 1 1 1 0 0 0 0 0 0 38400 384000
1 1 1 1 0 0 0 0 0 1 38440 384400
1 1 1 1 0 0 0 0 1 0 38480 384800
1 1 1 1 0 0 0 0 1 1 38520 385200
1 1 1 1 0 0 0 1 0 0 38560 385600
1 1 1 1 0 0 0 1 0 1 38600 386000
1 1 1 1 0 0 0 1 1 0 38640 386400
1 1 1 1 0 0 0 1 1 1 38680 386800
1 1 1 1 0 0 1 0 0 0 38720 387200
1 1 1 1 0 0 1 0 0 1 38760 387600
1 1 1 1 0 0 1 0 1 0 38800 388000
1 1 1 1 0 0 1 0 1 1 38840 388400
1 1 1 1 0 0 1 1 0 0 38880 388800
1 1 1 1 0 0 1 1 0 1 38920 389200
1 1 1 1 0 0 1 1 1 0 38960 389600
1 1 1 1 0 0 1 1 1 1 39000 390000
1 1 1 1 0 1 0 0 0 0 39040 390400
1 1 1 1 0 1 0 0 0 1 39080 390800
#1 #2 #3 #4 #5 #6 #7 #8 #9 #11 #10 = 0 #10 = 1
1 1 1 1 0 1 0 0 1 0 39120 391200
1 1 1 1 0 1 0 0 1 1 39160 391600
1 1 1 1 0 1 0 1 0 0 39200 392000
1 1 1 1 0 1 0 1 0 1 39240 392400
1 1 1 1 0 1 0 1 1 0 39280 392800
1 1 1 1 0 1 0 1 1 1 39320 393200
1 1 1 1 0 1 1 0 0 0 39360 393600
1 1 1 1 0 1 1 0 0 1 39400 394000
1 1 1 1 0 1 1 0 1 0 39440 394400
1 1 1 1 0 1 1 0 1 1 39480 394800
1 1 1 1 0 1 1 1 0 0 39520 395200
1 1 1 1 0 1 1 1 0 1 39560 395600
1 1 1 1 0 1 1 1 1 0 39600 396000
1 1 1 1 0 1 1 1 1 1 39640 396400
1 1 1 1 1 0 0 0 0 0 39680 396800
1 1 1 1 1 0 0 0 0 1 39720 397200
1 1 1 1 1 0 0 0 1 0 39760 397600
1 1 1 1 1 0 0 0 1 1 39800 398000
1 1 1 1 1 0 0 1 0 0 39840 398400
1 1 1 1 1 0 0 1 0 1 39880 398800
1 1 1 1 1 0 0 1 1 0 39920 399200
1 1 1 1 1 0 0 1 1 1 39960 399600
1 1 1 1 1 0 1 0 0 0 40000 400000
1 1 1 1 1 0 1 0 0 1 40040 400400
1 1 1 1 1 0 1 0 1 0 40080 400800
1 1 1 1 1 0 1 0 1 1 40120 401200
1 1 1 1 1 0 1 1 0 0 40160 401600
1 1 1 1 1 0 1 1 0 1 40200 402000
1 1 1 1 1 0 1 1 1 0 40240 402400
1 1 1 1 1 0 1 1 1 1 40280 402800
1 1 1 1 1 1 0 0 0 0 40320 403200
1 1 1 1 1 1 0 0 0 1 40360 403600
1 1 1 1 1 1 0 0 1 0 40400 404000
1 1 1 1 1 1 0 0 1 1 40440 404400
1 1 1 1 1 1 0 1 0 0 40480 404800
1 1 1 1 1 1 0 1 0 1 40520 405200
1 1 1 1 1 1 0 1 1 0 40560 405600
1 1 1 1 1 1 0 1 1 1 40600 406000
1 1 1 1 1 1 1 0 0 0 40640 406400
1 1 1 1 1 1 1 0 0 1 40680 406800
1 1 1 1 1 1 1 0 1 0 40720 407200
1 1 1 1 1 1 1 0 1 1 40760 407600
1 1 1 1 1 1 1 1 0 0 40800 408000
1 1 1 1 1 1 1 1 0 1 40840 408400
1 1 1 1 1 1 1 1 1 0 40880 408800
1 1 1 1 1 1 1 1 1 1 40920 409200
|
